TPMS (Tire Pressure Monitoring System) sensors are an essential component of modern vehicles, designed to monitor the air pressure in each tire and alert the driver when the pressure falls below a certain threshold. While these sensors are generally reliable, they can occasionally experience air leaks, which can lead to various issues. In this comprehensive guide, we will delve into the common causes of TPMS sensor leaks, provide technical specifications, and offer step-by-step DIY solutions to help you address this problem effectively.
Causes of TPMS Sensor Leaks
1. Valve Stem Issues
One of the primary causes of air leaks related to TPMS sensors is oxidation buildup on the valve stem. This buildup can lead to a poor seal, resulting in slow leaks. Additionally, the valve stem cap may contain rubber washers that can become unseated, causing pressure on the valve stem needle and further contributing to air leaks.
2. Sensor Malfunction
A faulty or malfunctioning TPMS sensor can also be a source of air leaks. If the sensor has micro cracks or other internal issues, it can allow air to escape, leading to pressure loss in the tire.
3. Improper Installation
Incorrect installation or over-tightening of the TPMS sensor can cause leaks. When the valve stem nut is over-tightened, it can damage the sensor or the valve stem, compromising the seal and leading to air leaks.
4. Design Flaws
Some TPMS sensor designs, particularly those mounted on the valve stem, can be prone to leaks due to centrifugal force or other mechanical stresses encountered during vehicle operation.
5. Maintenance Neglect
Lack of regular maintenance, such as cleaning and inspecting the valve stem and sensor, can contribute to the development of air leaks over time.
Technical Specifications
Oxidation Buildup
Road salt and other environmental factors can cause oxidation buildup on the valve stem, leading to poor seals and slow leaks. It is essential to regularly inspect and clean the valve stem to prevent this issue.
Valve Stem Nut Torque
The valve stem nut should be torqued to 4 N.m (3 lb-ft) to prevent over-tightening, which can damage the sensor or valve stem and cause air leaks.
Hondabond HT
Applying a film of Hondabond HT (P/N 08718-0004) to the inside surface of the valve bore can help ensure a proper seal and prevent air leaks.
DIY Steps to Address TPMS Sensor Leaks
-
Inspect the Valve Stem: Carefully examine the valve stem for any signs of oxidation buildup or damage. Clean the valve stem using a wire brush or other suitable tool to remove any accumulated debris or corrosion.
-

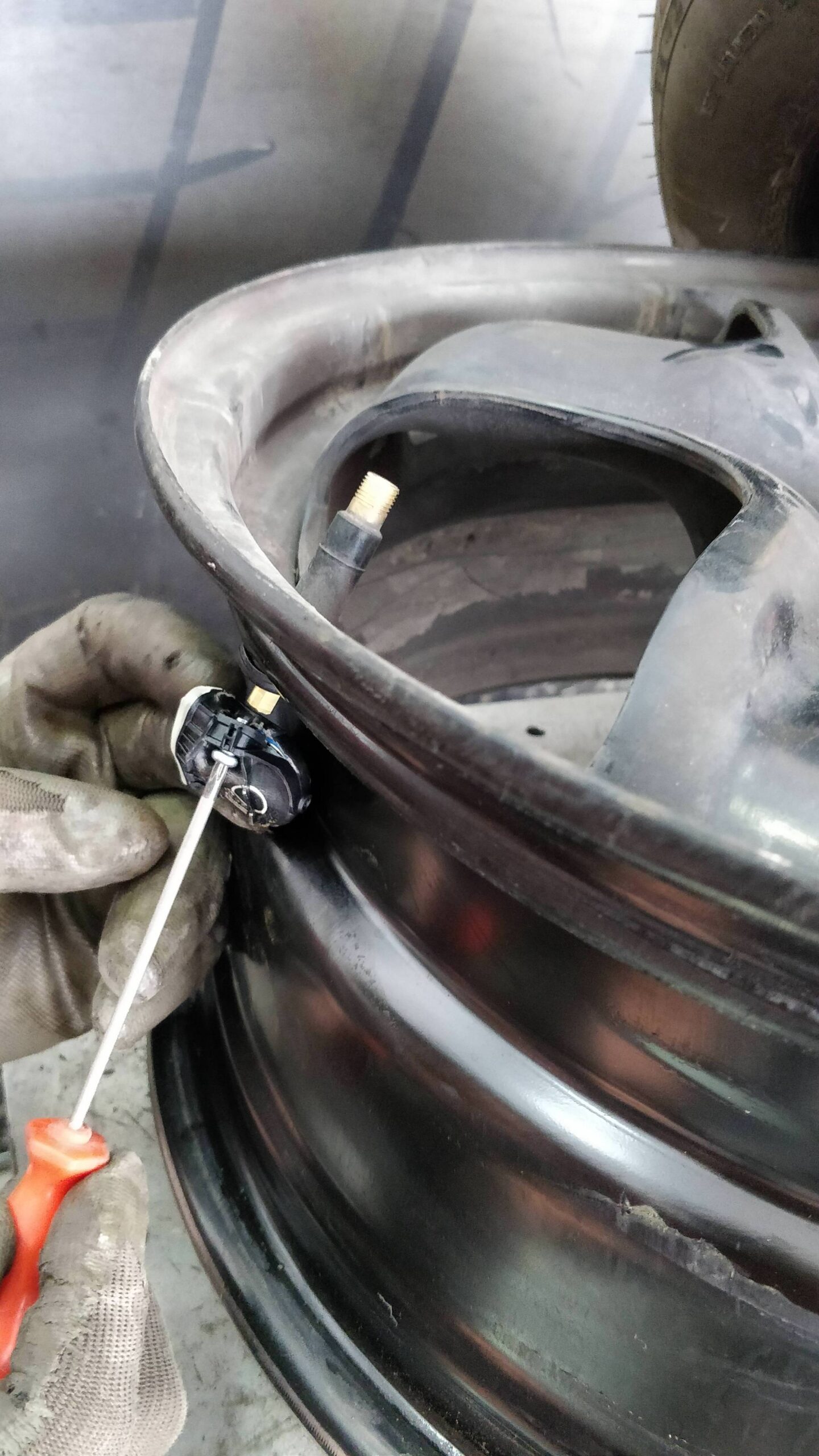

Check the Sensor: Visually inspect the TPMS sensor for any cracks, damage, or other signs of malfunction. If the sensor appears to be faulty, it may need to be replaced.
-
Tighten the Valve Stem Nut: Using a torque wrench, tighten the valve stem nut to the recommended torque of 4 N.m (3 lb-ft) to ensure a proper seal.
-
Apply Sealant: Apply a thin film of Hondabond HT (P/N 08718-0004) to the inside surface of the valve bore. This sealant can help create a better seal and prevent air leaks.
By following these DIY steps, you can effectively address and prevent TPMS sensor leaks, ensuring the proper functioning of your vehicle’s tire pressure monitoring system.
