The Tire Pressure Monitoring System (TPMS) is a crucial safety feature in modern vehicles, designed to alert drivers when their tire pressure falls below a certain threshold. However, when the TPMS sensor fails to provide a reading, it can be a frustrating and concerning issue for vehicle owners. This comprehensive guide delves into the common causes of TPMS sensor malfunctions and offers practical solutions to help you get your system back on track.
Causes of TPMS Sensor Malfunction
1. Sensor Failure
The TPMS sensor itself may be the root cause of the problem. These sensors are responsible for continuously monitoring the tire pressure and transmitting the data to the vehicle’s onboard computer. Over time, the sensor’s internal components, such as the pressure transducer, antenna, or microprocessor, can fail, preventing the sensor from functioning correctly.
Technical Specifications:
– TPMS sensors typically use a piezoelectric pressure transducer to measure the tire pressure.
– The sensor’s microprocessor processes the pressure data and transmits it via a radio frequency (RF) signal, typically at 315 MHz or 433 MHz.
– TPMS sensors are powered by a small lithium-ion battery, which has an average lifespan of 5-10 years, depending on the manufacturer and usage.
2. Incorrect Installation
Improper installation of the TPMS sensor can also lead to malfunctions. The sensor must be securely mounted to the wheel rim, with the valve stem properly aligned and the sensor’s internal components undamaged. Any misalignment or damage during the installation process can prevent the sensor from accurately measuring and transmitting the tire pressure.
Technical Specifications:

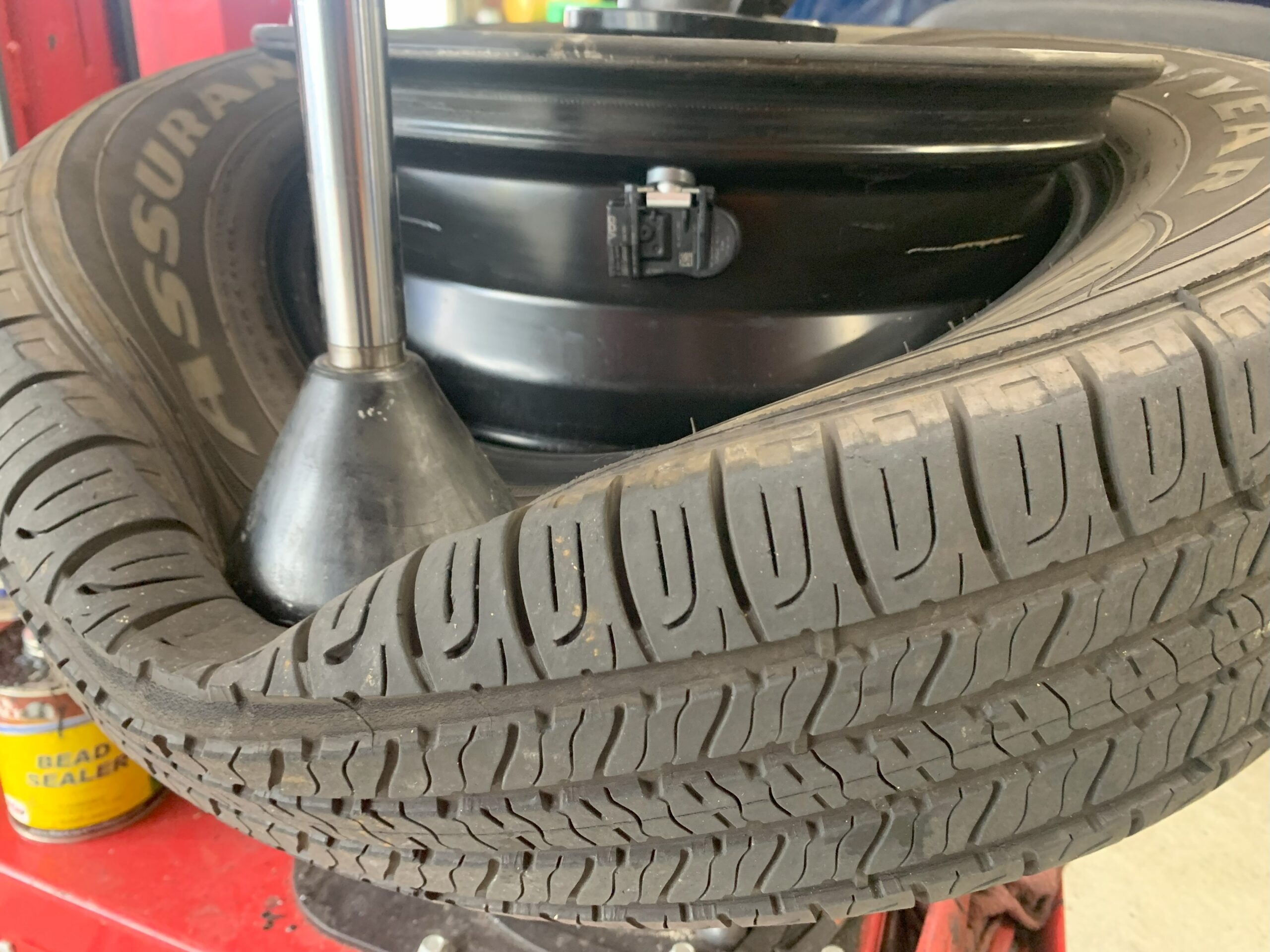

– TPMS sensors are typically installed on the wheel rim, either directly or using a valve stem-mounted sensor.
– The sensor must be positioned correctly to ensure the pressure transducer is in direct contact with the tire’s air chamber.
– Torque specifications for TPMS sensor installation vary by manufacturer, typically ranging from 30-60 inch-pounds (3.4-6.8 Nm).
3. Battery Issues
The TPMS sensor is powered by a small, replaceable battery, which can eventually become depleted over time. When the battery is weak or dead, the sensor will be unable to transmit the tire pressure data, resulting in a lack of readings.
Technical Specifications:
– TPMS sensor batteries are typically lithium-ion or lithium-metal, with an average lifespan of 5-10 years.
– Battery voltage for TPMS sensors is typically 3-6 volts, depending on the manufacturer.
– Some TPMS systems may provide a low battery warning light or message to alert the driver when the sensor battery is running low.
4. Interference
Radio frequency interference (RFI) from other electronic devices in the vehicle can disrupt the communication between the TPMS sensor and the vehicle’s onboard computer. This interference can prevent the sensor from transmitting accurate pressure readings.
Technical Specifications:
– TPMS sensors operate on specific radio frequencies, typically 315 MHz or 433 MHz, to transmit data.
– Common sources of RFI include mobile phones, Bluetooth devices, and other wireless electronics installed in the vehicle.
– The distance between the TPMS sensor and the vehicle’s receiver can also affect the signal strength and susceptibility to interference.
5. System Reset
Failure to properly reset the TPMS system after tire rotation, replacement, or other maintenance can cause the system to lose communication with the sensors, resulting in a lack of readings.
Technical Specifications:
– TPMS systems use a “learn” or “relearn” process to establish communication with the installed sensors.
– The relearn process typically involves driving the vehicle at a specific speed for a certain distance or using a diagnostic tool to initiate the relearn procedure.
– Failure to complete the relearn process correctly can prevent the TPMS system from receiving data from the sensors.
Solutions to TPMS Sensor Malfunction
1. Check Tire Pressure Manually
If the TPMS sensor is not providing a reading, the first step is to manually check the tire pressure using a reliable tire pressure gauge. This will help you determine if the issue is with the TPMS sensor or if there is an actual tire pressure problem that needs to be addressed.
Technical Specifications:
– Tire pressure should be checked when the tires are cold, typically before the vehicle has been driven for more than a few miles.
– The recommended tire pressure for your vehicle can be found in the owner’s manual or on the driver’s side door jamb sticker.
– Tire pressure gauges can be digital or analog and should be accurate to within 1-2 PSI (0.07-0.14 bar) of the actual tire pressure.
2. Reset the TPMS System
If the manual tire pressure check confirms that the tires are within the recommended range, the next step is to reset the TPMS system. This process can vary depending on the vehicle make and model, but it typically involves driving the vehicle at a specific speed for a certain distance or using a diagnostic tool to initiate the relearn procedure.
Technical Specifications:
– The TPMS relearn process often requires driving the vehicle at a speed between 20-40 mph (32-64 km/h) for a distance of 10-30 minutes.
– Some vehicles may have a dedicated TPMS relearn button or menu option in the infotainment system or instrument cluster.
– Diagnostic tools, such as those used by professional mechanics, can also be used to initiate the TPMS relearn process.
3. Replace Faulty Sensors
If the TPMS sensor is determined to be the root cause of the issue, the sensor will need to be replaced. This typically involves removing the old sensor and installing a new one, which may require special tools and procedures depending on the vehicle.
Technical Specifications:
– TPMS sensors are available as direct replacements for specific vehicle makes and models.
– The replacement sensor must be programmed or “learned” to the vehicle’s TPMS system, often using a diagnostic tool.
– Proper torque specifications must be followed when installing the new TPMS sensor to ensure a secure and reliable connection.
4. Eliminate Interference
If the TPMS sensor is functioning correctly, but the readings are still not being received by the vehicle’s onboard computer, the issue may be related to radio frequency interference. Identifying and eliminating the source of the interference can help restore proper TPMS operation.
Technical Specifications:
– Common sources of RFI include mobile phones, Bluetooth devices, and other wireless electronics installed in the vehicle.
– Shielding or relocating the TPMS sensor or the vehicle’s TPMS receiver can help reduce the impact of interference.
– Some vehicles may have built-in RFI filtering or signal boosting features to improve TPMS performance.
5. Consult a Professional
If the TPMS issue persists despite your efforts, it’s best to consult a professional mechanic or the vehicle’s manufacturer for further assistance. They have access to specialized diagnostic tools and can perform more advanced troubleshooting to identify and resolve the problem.
Technical Specifications:
– Professional mechanics may use TPMS-specific diagnostic tools to read sensor data, identify faults, and perform system relearns.
– Manufacturers may have specific procedures or software updates to address TPMS-related issues on their vehicles.
– In some cases, the TPMS system may need to be repaired or replaced by a professional if the issue cannot be resolved through basic troubleshooting.
By understanding the technical specifications and common causes of TPMS sensor malfunctions, you can effectively diagnose and resolve the issue, ensuring your vehicle’s tire pressure monitoring system is functioning correctly and keeping you safe on the road.
