The issue of a TPMS (Tire Pressure Monitoring System) sensor not relearning after a tire rotation or replacement is a common problem faced by many vehicle owners. This comprehensive guide will provide you with a detailed understanding of the TPMS relearn process, sensor programming, and step-by-step troubleshooting techniques to help you resolve this issue effectively.
Understanding TPMS Relearn and Sensor Programming
TPMS Relearn vs. Sensor Programming
- Vehicle Relearn: A standard TPMS service step that ensures the replacement TPMS sensor works properly and the vehicle’s complete TPMS system functions correctly. This step is required for both OE (Original Equipment) and aftermarket sensors.
- Sensor Programming: An additional step for some aftermarket sensors that need to be programmed with the proper protocol/application information for the vehicle before installation and relearn.
TPMS Sensor Frequencies
TPMS sensors typically operate at a frequency of 315 MHz, which is the most common frequency used in North America. However, some vehicles may use 433 MHz sensors, particularly in European and Asian markets. It’s essential to ensure that the replacement sensor matches the frequency of the vehicle’s TPMS system.
TPMS Sensor Types
There are different types of TPMS sensors, each with its own requirements for programming and relearn:
- Programmable Sensors: These sensors need to be programmed with the specific vehicle information, such as the sensor ID, before installation and relearn.
- Universal Sensors: These sensors can be used on multiple vehicle models, but they still require programming and relearn to function correctly.
- Cloneable Sensors: These sensors can be programmed to match the ID of the original sensor, making the relearn process simpler.
Troubleshooting Steps

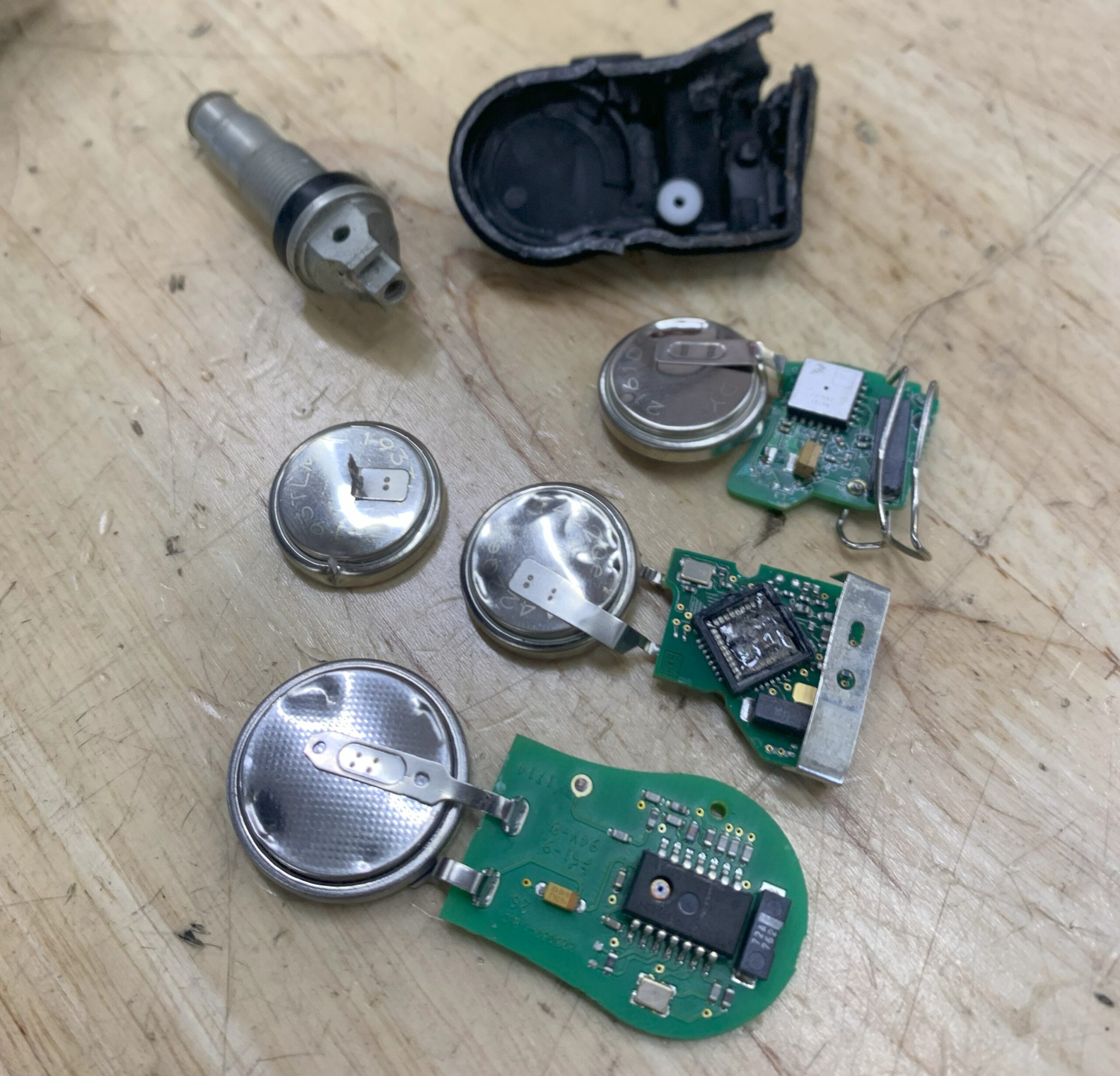

1. Check the Sensor Battery
If the internal battery in the TPMS sensor is dead, it won’t register with the vehicle’s system. A shop can put the system into learning mode and check which tire sensors respond using a TPMS registry tool. Non-responsive sensors should be replaced.
2. Use the Correct Relearn Procedure
Follow the manufacturer’s recommended relearn procedure, which may vary by vehicle model. Some common relearn procedures include:
- OBD Relearn: The vehicle’s on-board diagnostics (OBD) system is used to initiate the relearn process.
- Manual Relearn: The relearn process is performed manually, often by inflating the tires to a specific pressure and driving the vehicle at a certain speed.
- Auto Relearn: The vehicle’s TPMS system automatically detects the new sensor IDs and completes the relearn process.
Refer to your vehicle’s service manual or the sensor manufacturer’s instructions to ensure you’re using the correct relearn procedure.
3. Check for Interference Issues
If the TPMS system does not reset after correctly performing all steps, there could be an interference issue with the sensor and the vehicle’s system. Potential causes of interference include:
- Sensor Placement: Ensure the sensor is installed correctly and not interfering with other vehicle components.
- Electromagnetic Interference: Sources of electromagnetic interference, such as nearby electrical wiring or equipment, can disrupt the TPMS signal.
- Sensor Damage: Physical damage to the sensor, such as a cracked housing or damaged antenna, can cause interference.
4. Verify Sensor Compatibility
Ensure the aftermarket TPMS sensors are compatible with your vehicle’s make, model, and year. Follow the correct programming and relearn procedures specified by the sensor manufacturer.
5. Use the Right Tools
Utilize a TPMS scan tool or registry tool to complete the relearn procedure and diagnose any issues. These specialized tools can help you identify sensor IDs, check sensor status, and guide you through the relearn process.
Additional Tips and Considerations
Relearn Process
The relearn process typically involves a series of steps, including:
- Inflating the tires to the recommended pressure.
- Reading the sensor IDs using a TPMS tool.
- Driving the vehicle at a specific speed (usually 20-40 mph) for a certain distance to complete the relearn.
Refer to your vehicle’s service manual or the sensor manufacturer’s instructions for the exact relearn procedure.
Sensor Replacement
If a TPMS sensor is faulty, replace it with a compatible one and follow the correct relearn procedure. Ensure the new sensor is properly programmed and registered with the vehicle’s TPMS system.
Workarounds and Alternatives
Some users have tried workarounds like scanning a working sensor/tire twice or using a sensor outside the tire, but these methods are not recommended and may not work reliably. It’s best to follow the manufacturer’s recommended procedures for the most reliable and long-lasting solution.
Technical Specifications
- Frequency: TPMS sensors typically operate at a frequency of 315 MHz, but some vehicles may use 433 MHz sensors.
- Sensor Types: Programmable, universal, and cloneable TPMS sensors, each with their own requirements for programming and relearn.
- Sensor Battery Life: TPMS sensors typically have a battery life of 5-10 years, depending on usage and environmental factors.
- Sensor Pressure Range: TPMS sensors can typically monitor tire pressures from 0 to 87 psi (0 to 600 kPa).
- Sensor Accuracy: TPMS sensors are generally accurate to within ±1 psi (±7 kPa) of the actual tire pressure.
